12×40W LED RGBW 4in1 Pixel Control Moving Head Light with 540° Pan and 270° Tilt for Stage and Event Lighting

Nombre De La Marca:	Wincode Optronics
Cuota De Producción:	2
Precio:	$345-355

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

Guangdong, China

Voltaje de entrada:

AC 90-240v, 50/60hz. Las emisiones de CO2 de las centrales eléctricas de los Estados miembros se cal

Consumo de energía:

600W

Temperatura del color:

2800K-8500K

Ángulo de haz:

4.5-45 grados

Rango de atenuador:

0-100%

Frecuencia de la estroboscopia:

0 ~ 20Hz

Modo de control:

DMX512, RDM

Gama de rango:

540°

Rango de inclinación:

270°

Resolución de inclinación:

16 bits

Peso neto:

14.5kgs

Peso bruto:

16 kgs

Calificación IP:

IP20

Cantidad LED:

12pcs 40W

Sistema de enfriamiento:

Ventilador de control de velocidad inteligente

Resaltar:

RGBW 4in1 Pixel Control Moving Head Light

12×40W LED Stage Light

540° Pan Beam Moving Head Light

Descripción del Producto

12×40W LED RGBW 4in1 Pixel Control Zoom Moving Head Light

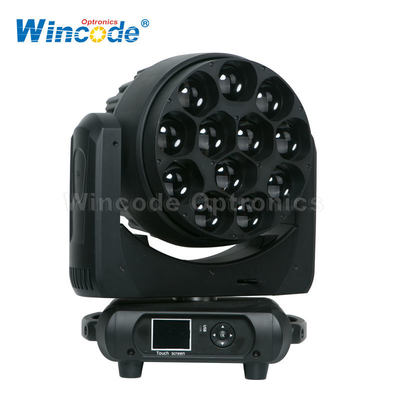

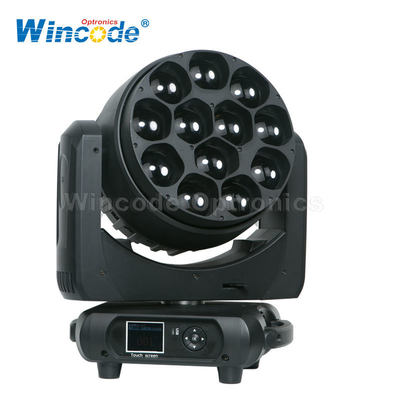

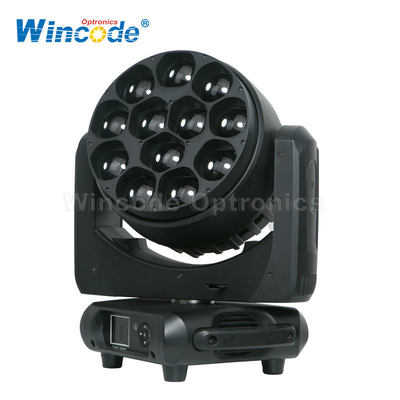

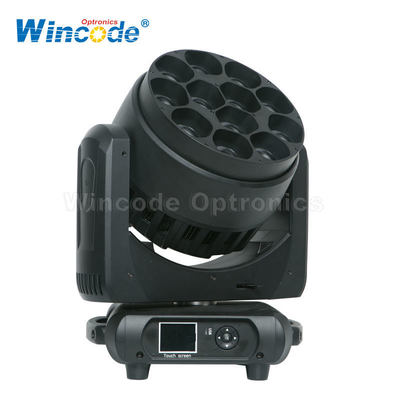

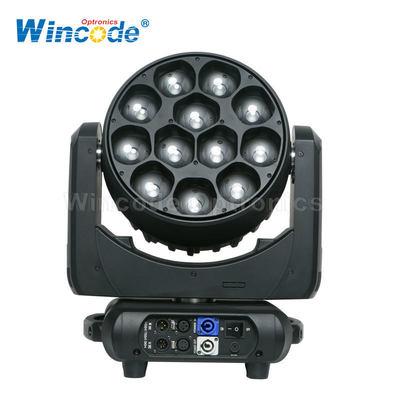

12×40W LED Moving Head Light product image

Product Specifications

Input voltage	100-240 V, 50/60 Hz
Lamp	12pcs 40W Osram 4in1 LEDs
Power consumption	600W
Color temperature	2800K-8500K
Beam angle	4.5-45degree
Dimmer	0-100% dimming
Strobe	0~20HZ
Control mode	RDM, Standard DMX512, Automatic and Master/slave mode
Display	Color LCD display
Housing	Flame-retardant plastic
DMX channels	12/17CH (Overall control), 11CH/17/18CH/58CH (Dot control)
Pan/Tilt	Pan: 540°, Tilt: 270° (16 bit resolution)
Connections	3&5-pin XLR in/out, powerCon in/out
Weight	N.W.: 14.5kgs, G.W.: 16kgs
IP rating	IP20

The WOP-LM4012 12×40W LED Pixel Zoom Moving Head Light features high-power 4-color wash capability with 12 pieces of 40W multi-chip LEDs (Red, Green, Blue, White). It offers a fast 4.5° to 50° beam angle zoom range, advanced cooling systems with temperature monitoring, pixel control, color-pixel zone effects, and linear color temperature presets (2,700-8,000K). Designed for flicker-free operation in TV and film applications with DMX/RDM control and universal power supply (100-240V).

Ideal Applications

Perfect for high-end venues including TV stations, theaters, concert stages, large events, auto shows, and other professional settings with demanding noise requirements.
